Distribution of satellite roles

The Protect4S VM RFC user in the satellite systems needs the role ESEC_SA_SATELLITE to work correctly. From time to time, this role needs to be updated.

Should this happen, all Protect4S VM customers will be advised by mail to update the role in all satellite systems. This can be done using the CUA, manually or also via central update in the Protect4S system:

Central update of satellite user role (Protect4S menu)

Central update of satellite user role (Fiori menu)

For this central update to work, an extra role must be added to the Protect4S VM ABAP RFC user: ESEC_SA_SATELLITE_PUSH. The CUA must not be active.

Manual distribution of Protect4S VM satellite system user role

It is also possible to download the required Protect4S VM satellite role from the Protect4S system.

The 3 roles:

• ESEC_SA_SATELLITE for the ABAP RFC satellite system user

• ESEC_SA_SATELLITE_PUSH the (optional) role for automatic role distribution

• ESEC_SA_SATELLITE_MITIGATE the role required for the Mitigation of OSS Notes

are always shipped with every version of Protect4S. When executing mitigations on a S/4HANA system, in addition to the ESEC_SA_SATELLITE_MITIGATE role, you also need the role ESEC_SA_SATELLITE_MITIGATE_S4 for a delta of additional S/4HANA authorizations. This role can be downloaded from the Protect4S website.

Download the Protect4S VM role(s) you require

Log in to the Protect4S system and execute transaction PFCG. Select the appropriate role ESEC_SA_SATELLITE and select from the menu "Role", "Download":

Transaction PFCG, select Protect4S role

From the PFCG menu, select "Role", "Download":

Select Role, Download

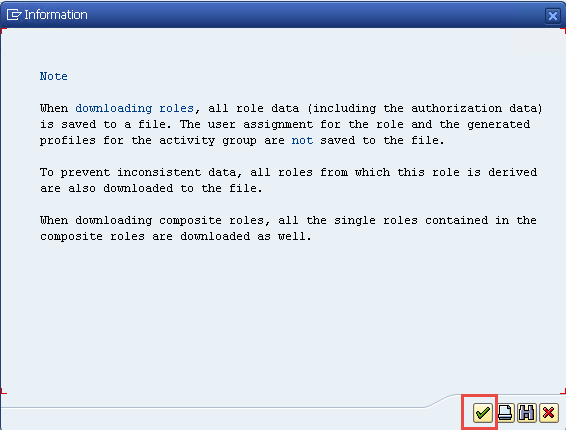

Confirm the popup:

Confirm the popup

Select a location for the role on your PC and save the file

Save the role on your local PC

You may repeat this step for roles ESEC_SA_SATELLITE_PUSH and ESEC_SA_SATELLITE_MITIGATE when you use the automatic distribution of Protect4S satellite user roles or the Automatic Mitigation of OSS Notes functionality.

Upload the role to a satellite system

Login to the satellite system, execute transaction PFCG and select Role, Upload from the PFCG menu:

Select Role, Upload from the PFCG menu

Confirm the popup:

Select the role file you downloaded to your PC in the previous step:

Select role file downloaded in the first step

Provide permission to upload the file:

Provide permission for upload

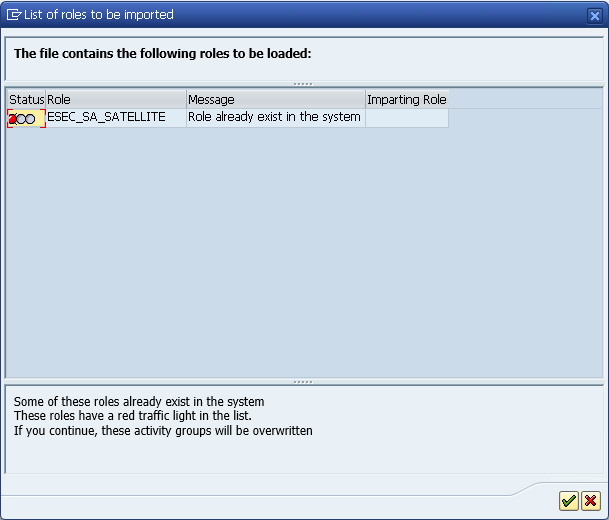

Overwrite the old version of the role that exists

Ignore warning and overwrite old role version

Make sure all lights are green in PFCG

Make sure all 3 lights are green

You may repeat this step for role ESEC_SA_SATELLITE_PUSH if you want to use automatic distribution of Protect4S VM satellite user roles.

You may repeat this step for role ESEC_SA_SATELLITE_MITIGATE if you want to use the Automatic application of OSS Notes functionality.

If one of the lights is not green, it could be that the authorization profile needs to be regenerated and/or redistributed to the Protect4S satellite system user. Ask an SAP user administrator to do this if you do not know how to do this.
